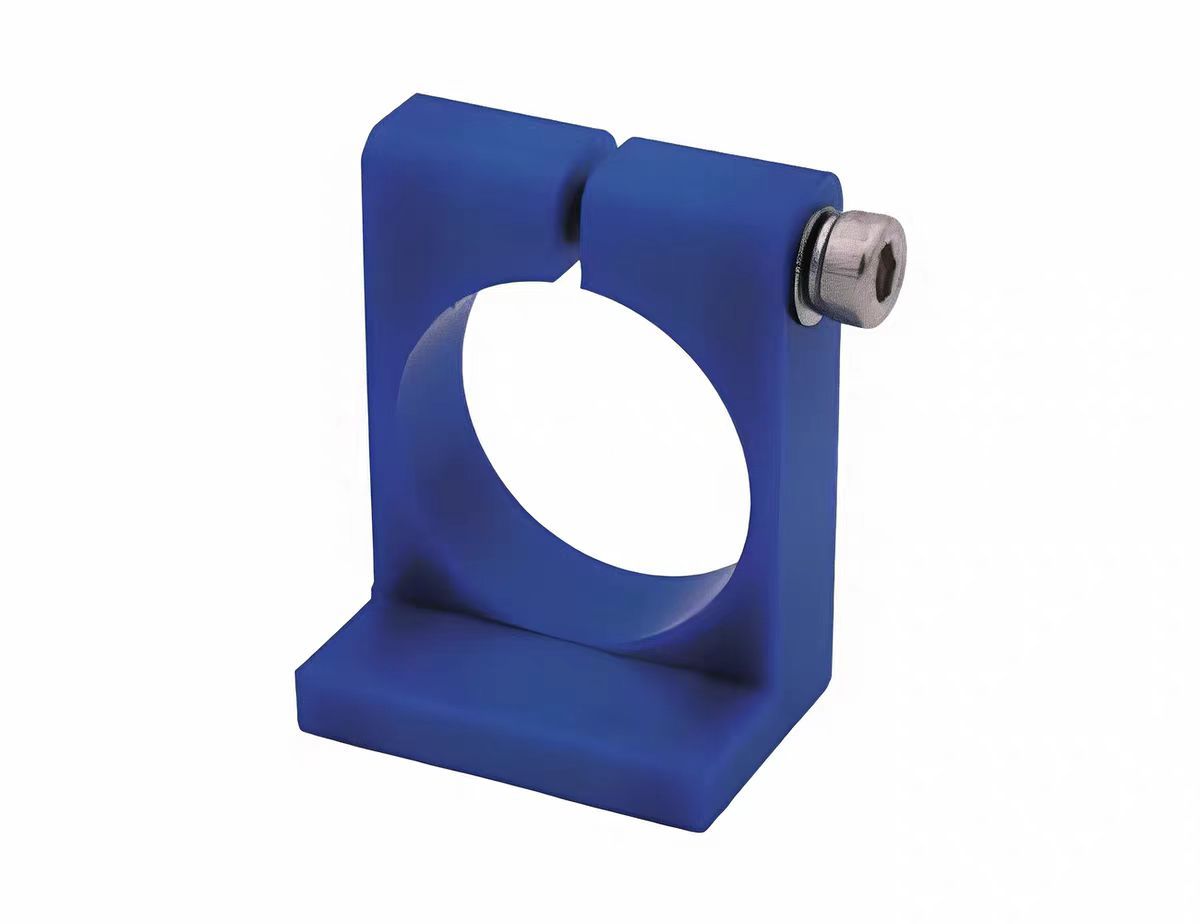

Finger Gripper Options LA4-I

The single-action indexing component refers to the replaceable and adjustable accessories or components configured for the single-action indexing mechanism in order to adapt to different workpieces, optimize the feeding performance, or achieve rapid production changeover. The core purpose of these options is to expand the application scope, enhance the feeding stability, protect the workpiece surface and improve the flexibility of the equipment while retaining the basic principle of the single-action lever (one-way drive, reverse return).

Product Details

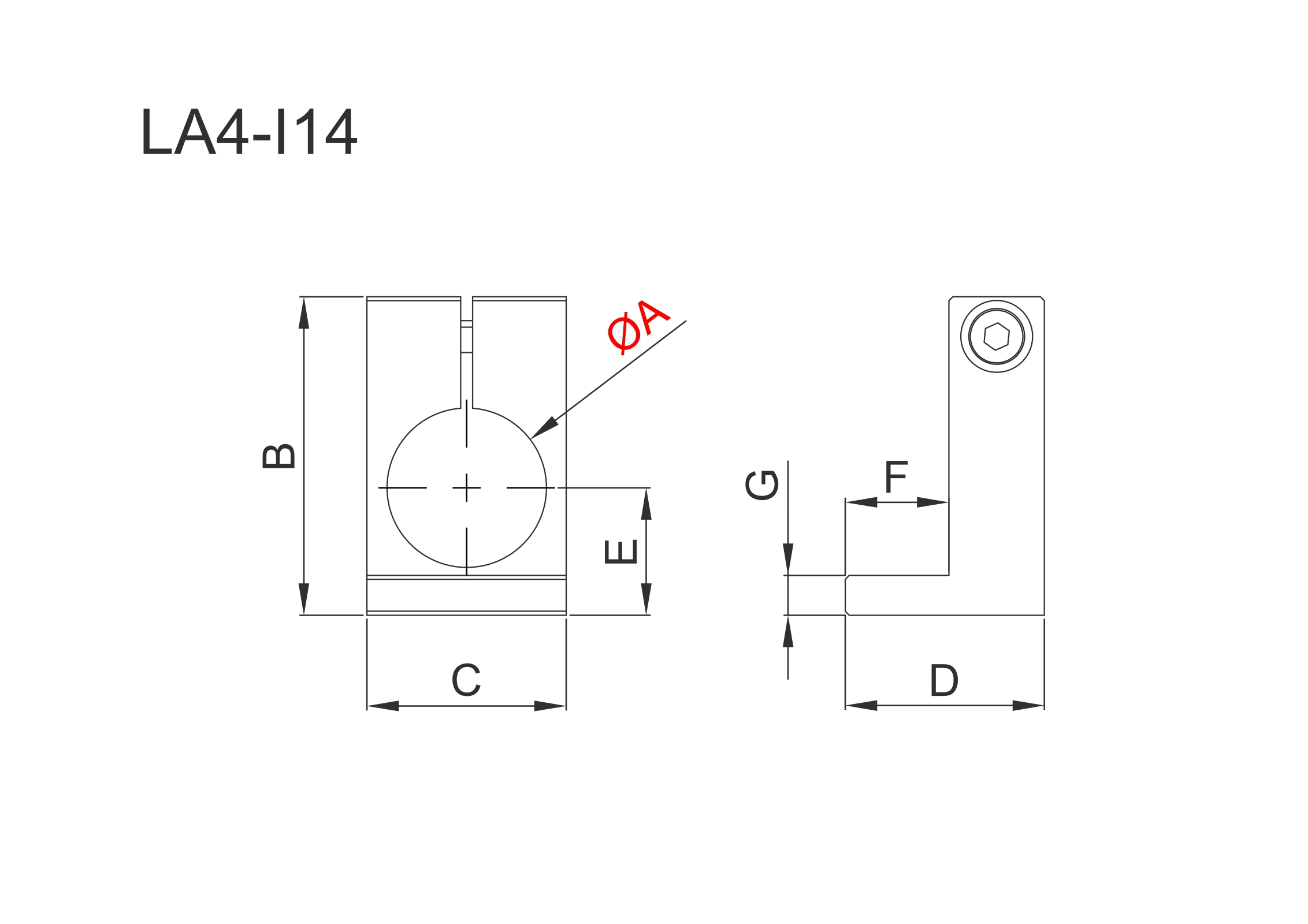

                          Model A(mm) B(mm) c(mm) D(mm) E(mm) F(mm) G(mm) Weight
0
LA4-I14
Ø14 24 19 12 11 6 3.5 5g
0
LA4-I20
Ø20 35 25 25 16 13 5 14g
0
LA4-I30
Ø30 45 35 25 21 13 5.5 23g
